2015 - 2020 | Tahoe K-9 Transport


2015 - 2020 | Tahoe K-9 Transport
Item Number: VAHC23
Size/Color
Quantity



Detailed Description

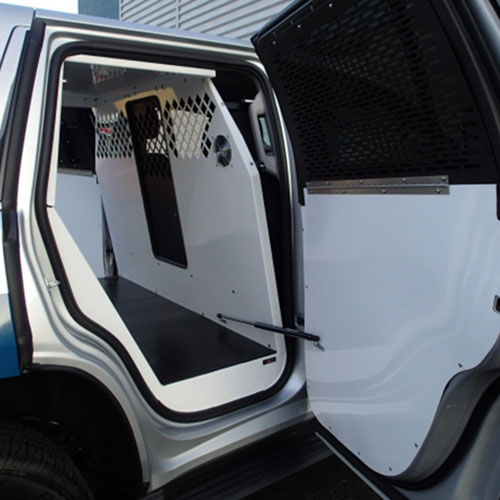

Havis K9 insert for 2015 - 2020 Chevy Tahoe

Kit Includes:

  • Insert container with sliding door

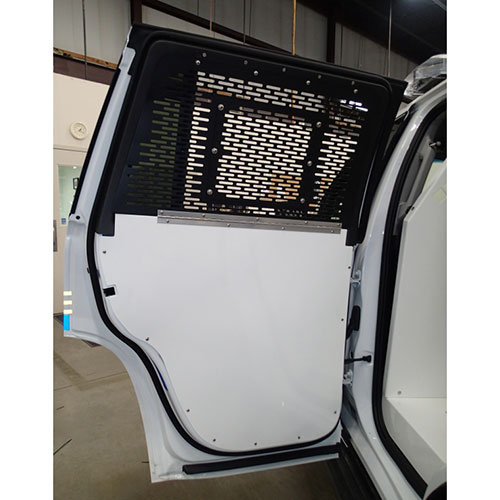

  • 2 door panels
  • 2 side window guards
  • 1 rear window guard
  • 1 rubber mat
  • dome light

Product Details:

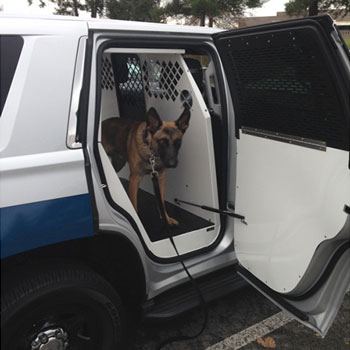

K9 transportation system for 2015-2020 Chevrolet Tahoe

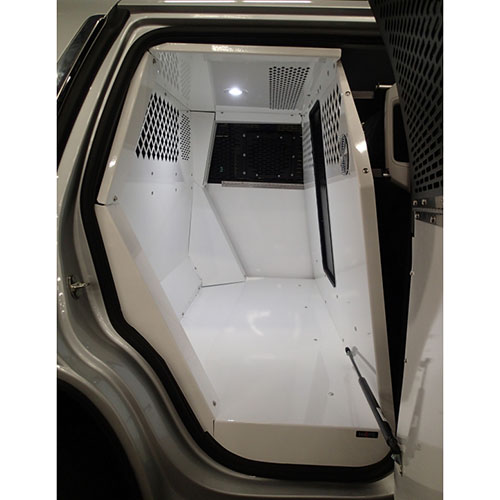

Kit housing with one front sliding door, aluminum door panels and fold-down interior window guards
Fabricated from heavy-duty aluminum for long-lasting durability
Super durable white powder coat finish
Easy to install and clean
Designed to maximize driver seat travel without compromising K9 entry
Window guards include bolt on flat panels that can be removed for optional 10" emergency exhaust fan mounting. fan can mount on driver or passenger side
10" fan and mount kit for window guard mounting ( option sold separately)

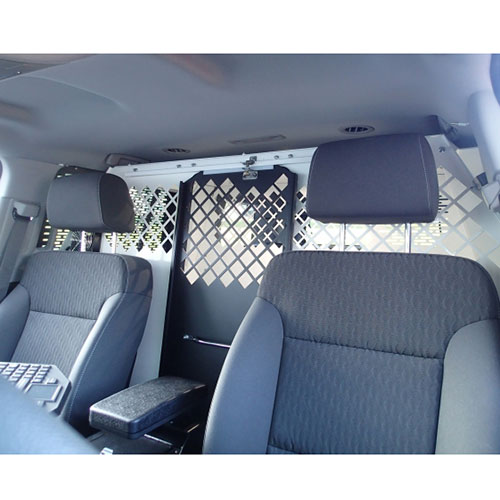

Front wall includes mounting location for optional air circulation fan (VAH500 sold separately)

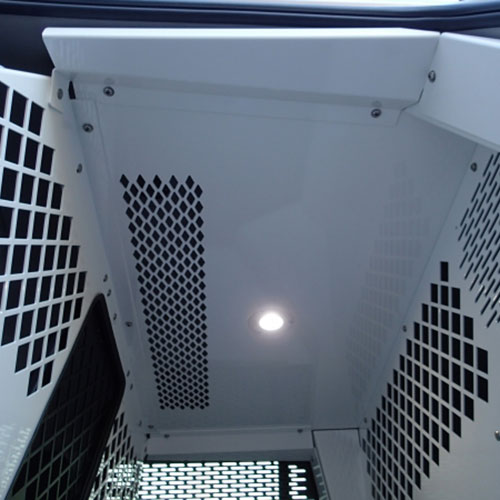

Ceiling includes perforated area to allow OEM air conditioning vents to blow into K9 compartment.
Ceiling also includes LED dome light with white or red color feature. (two position rocker switch included)
Includes heavy duty rubber mat

Specifications:

Kit dimensions: 31" deep by 64" wide by 41" high
Floor is as low as possible (25.75" off ground)
Front entry door opening 14" wide x 30" high
41 inches from rear K9 wall to rear sill trim. Plus 4 inches from sill trim to OEM rear hatch (45" total)

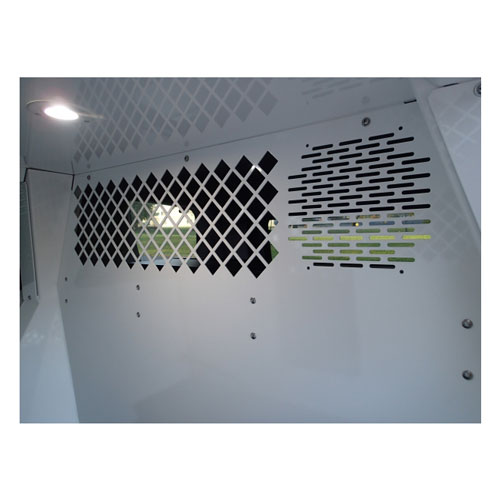

K9 kit window guards include a .281" x 1.75" obround slotted hole pattern to minimize the possibility of fingers accidently being put into the K9 compartment
Gross Weight: 250.00 lbs

NOTE:

    All inserts are made to order and will ship via truck freight in 8 to 10 weeks.

    When ordering, please indicate the
    Year and Model of the vehicle in the above provided space, thanks.
